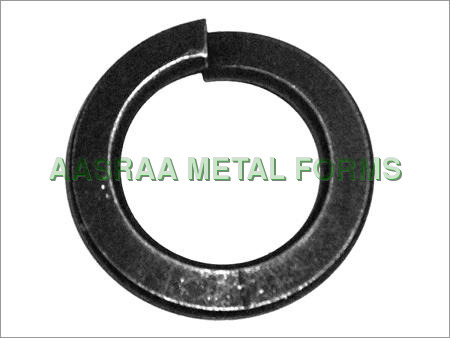

Flat Spring Washer

Flat Spring Washer
Flat Spring Washer
Product Code : M-20
Brand Name : MSE
Product Description

Keeping in mind the minutest details about the spare parts, we are proficiently manufacturing and exporting a huge stock of Flat Spring Washer. Helical in shape, these washers are generally used in combination with bolts and screws. Preferred for compensating the tension loss in machine parts, these washers are offered in a variety of sizes and dimensions. Our entire stock of Flat Spring Washer is offered to our clients at the market leading prices.

Features

  • Impact resistant
  • Accurate dimensions
  • Durable quality

  Introduction

Spring washers are helically coiled. They are popularly used with bolts and screws to compensate loss of tension in component parts. They are available in two varieties. First is of Rectangular Section and the other is Square in section. All the sizes are readily available in both Millimeteres and Inches.

Salient Features

Spring Washers have the dual function of

  • Spring take up devices to compensate for developed looseness and lss of tension between components of an assembly. It is a well known fact that the initial tension in a bolt or screw is reduced by its gradual stretch, the slight wearing-down of the contracting surface or the breakdown of rust, scale or protective paint, enamel, etc., finishes. The use of a Spring Washer under the tightening pressure diminishing below a danger level, I.e. the point at which the nut and bolt can easily rotate backwards.

  • Hardened thrust bearing to facilitate assembly of bolted fastenings, by decreasing the frictional resistance between the bolted surfaces and the bearing face of bolt head or nut.

Raw Material
Washers are manufactured out of Spring Steel EN-42 or as Parties Specification.

Hardness

Washers are hardened and tempered to 42 to 47 degrees Rockwell C Scale or as per the customer's requirement.

Finish
As a standard, Spring Washers are thermally blackened. We also do various finishes like Zinic, Copper, Nickel and other as per the party's specification.

Catlog No   Nominal Size   Inside Diameter   Width   Thickness   M.D.Max
 Min Max
MSF3  3mm
3.1  3.4  1.3  0.8  6.0
MSF4
4mm
4.1  4.4  1.5  0.9  7.4
MSF5
5mm
5.1  5.4  1.8  1.2  9.0
MSF6
6mm
6.1  6.0  2.5  1.6  11.4
MSF8
8mm
8.2  8.6  3.0  2.0  14.6
MSF10
10mm 10.2
10.8  3.5  2.2  17.8
MSF12
12mm
12.2  13.0  4.0  2.5  21.0
MSF14
14mm
14.2  15.0  4.5  3.0  24.0
MSF16
16mm
16.2  17.2  5.0  3.5  27.2
MSF18
18mm
18.2  19.2  5.0  3.5  29.2
MSF20
20mm
20.2  21.2  6.0  4.0  33.2
MSF22
22mm
22.5  23.5  6.0  4.0  35.5
MSF24
24mm
24.5  25.5  7.0  5.0  39.5
MSF27
27mm
27.5  28.5  7.0  5.0  42.5
MSF30
30mm
30.5  31.8  8.2  6.0  48.2
MSF32
32mm
32.5  33.8  8.2  6.0  50.2
MSF33
33mm
33.5  34.8  10.2  6.2  55.2
MSF36
36mm  36.5  37.8  10.2  6.2  58.2
